Controlled Traffic Farming in Australia: Revolutionizing Agriculture Through Precision and Sustainability

Controlled Traffic Farming (CTF) represents one of the most significant advances in sustainable agriculture practices adopted across Australia’s diverse farming landscapes. This innovative approach to crop production fundamentally transforms how farmers manage their land by permanently separating crop zones from traffic lanes, creating a system that maximizes both productivity and environmental stewardship. As Australian agriculture faces mounting pressures from climate variability, rising input costs, and the imperative for sustainable intensification, CTF emerges as a crucial technology that addresses multiple challenges simultaneously while delivering measurable economic returns.

The adoption of CTF in Australia has evolved from experimental trials in the 1990s to become a mainstream practice that now spans approximately 30 percent of the nation’s cropped hectares1 2. This transformation reflects not only the proven benefits of the system but also the Australian agricultural sector’s capacity for innovation and adaptation. From the wheat fields of Western Australia to the cotton farms of Queensland, CTF systems are reshaping how farmers approach soil management, machinery operations, and long-term sustainability.

An aerial view of a large field demonstrating controlled traffic farming with distinct parallel tracks nexat

The Australian Agricultural Landscape and CTF Adoption

Australia’s vast agricultural regions present unique challenges and opportunities for CTF implementation. The continent’s diverse soil types, ranging from deep sands in Western Australia to heavy clays in Queensland, combined with highly variable rainfall patterns, create distinct regional contexts for CTF adoption.

Recent surveys reveal striking regional variations in CTF uptake across the country1. In Queensland and northern New South Wales, where stored soil moisture farming systems dominate, adoption rates reach an impressive 60 percent of cropping operations. This high adoption reflects the particular suitability of CTF to these regions’ farming systems, where soil moisture conservation and timely operations during narrow planting windows are critical for success1.

Western Australia, despite being the birthplace of much CTF research and development, shows more modest adoption rates at 21 percent of growers using fully matched CTF systems1. This figure, while lower than the northern regions, still represents thousands of hectares under CTF management across the state’s extensive grain belt. The adoption patterns in Western Australia reflect the diverse soil types and farming systems present across different rainfall zones, from the high-rainfall areas near Esperance to the low-rainfall regions of the northern wheatbelt.

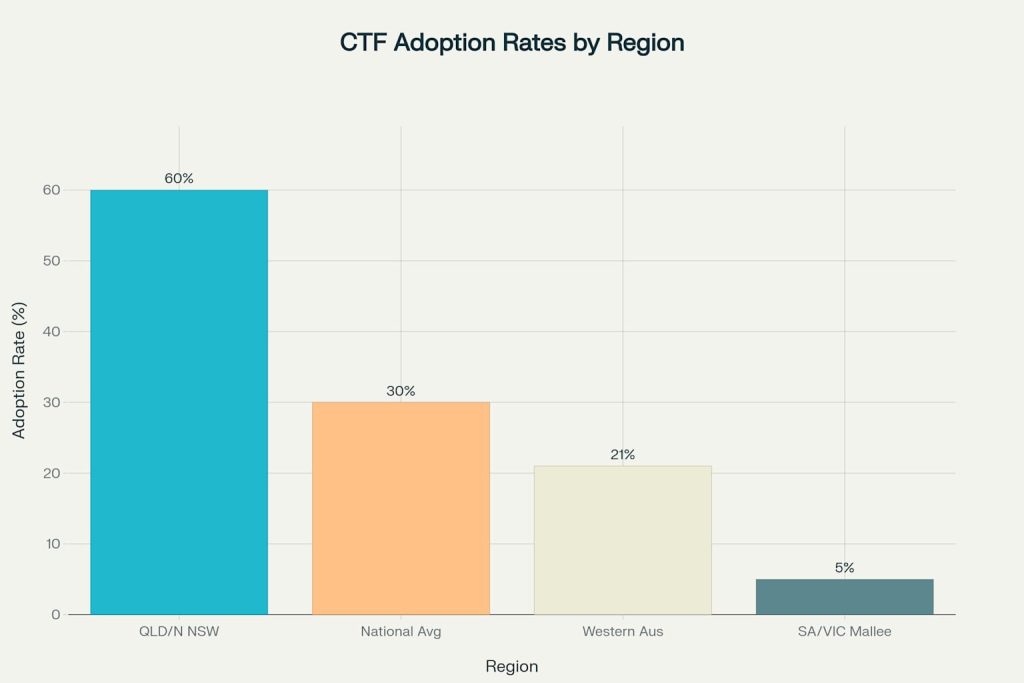

Controlled traffic farming adoption rates vary significantly across Australian agricultural regions, with the highest adoption in Queensland and northern NSW where stored soil moisture systems are common

The lowest adoption rates occur in South Australia and Victoria’s Mallee regions, where only 5 percent of farms have implemented CTF systems3. This reflects the unique challenges these regions face, including the prevalence of sandier soils, different machinery requirements, and varying economic pressures. However, recent research initiatives and demonstration programs are beginning to address these barriers and show promising results for CTF adaptation in these environments.

Understanding the Fundamentals of Controlled Traffic Farming

At its core, CTF represents a paradigm shift from random traffic patterns to a highly organized system where all machinery loads are confined to the least possible area of permanent traffic lanes4. This fundamental change separates agricultural fields into two distinct zones: the crop root bed, which remains soft and uncompacted for optimal plant growth, and the permanent traffic lanes, which provide firm, compacted surfaces for machinery operation.

The science underlying CTF effectiveness stems from understanding soil compaction processes and their impact on crop production. Modern agricultural machinery, particularly when fully loaded, can weigh 40 tonnes or more, creating substantial ground pressures that compress soil structure and reduce pore space essential for root growth, water infiltration, and gas exchange5 6. Without CTF, conventional farming systems typically result in 75 percent of a paddock being trafficked within a single season, with complete field coverage occurring within two seasons4 7.

Plant roots navigating through compacted soil, illustrating how high soil strength impedes root growth soilqualityknowledgebase.org

The implementation of CTF dramatically reduces this compaction footprint. A properly designed CTF system can limit machinery traffic to just 9-15 percent of the total field area7 8, with this traffic consistently confined to the same permanent lanes. This reduction in trafficked area has profound implications for soil health, crop performance, and farm profitability.

The technological foundation of modern CTF relies heavily on precision agriculture technologies, particularly Real-Time Kinematic (RTK) GPS guidance systems. These systems provide positioning accuracy within 2-3 centimeters, enabling machinery operators to return to exactly the same traffic lanes season after season9 10. The precision required for effective CTF implementation necessitates this level of accuracy, as even small deviations can result in widening of traffic lanes and reduced system effectiveness.

A modern green tractor equipped with a Trimble GPS antenna, essential for precision agriculture and controlled traffic farming pfgaustralia.com

Quantifying the Benefits: Economic and Environmental Returns

The benefits of CTF extend across multiple dimensions, creating value through improved productivity, reduced costs, and enhanced environmental outcomes. Research conducted across Australia’s diverse agricultural regions has consistently demonstrated significant positive impacts from CTF implementation.

Economic Benefits

The economic advantages of CTF are both immediate and cumulative, building value over time as soil health improves and operational efficiencies are realized. Grain yield increases typically range from 2-16 percent, depending on soil type, rainfall conditions, and the extent of previous compaction11 12. These yield improvements stem from enhanced root exploration, improved water and nutrient uptake, and better plant establishment in uncompacted soils.

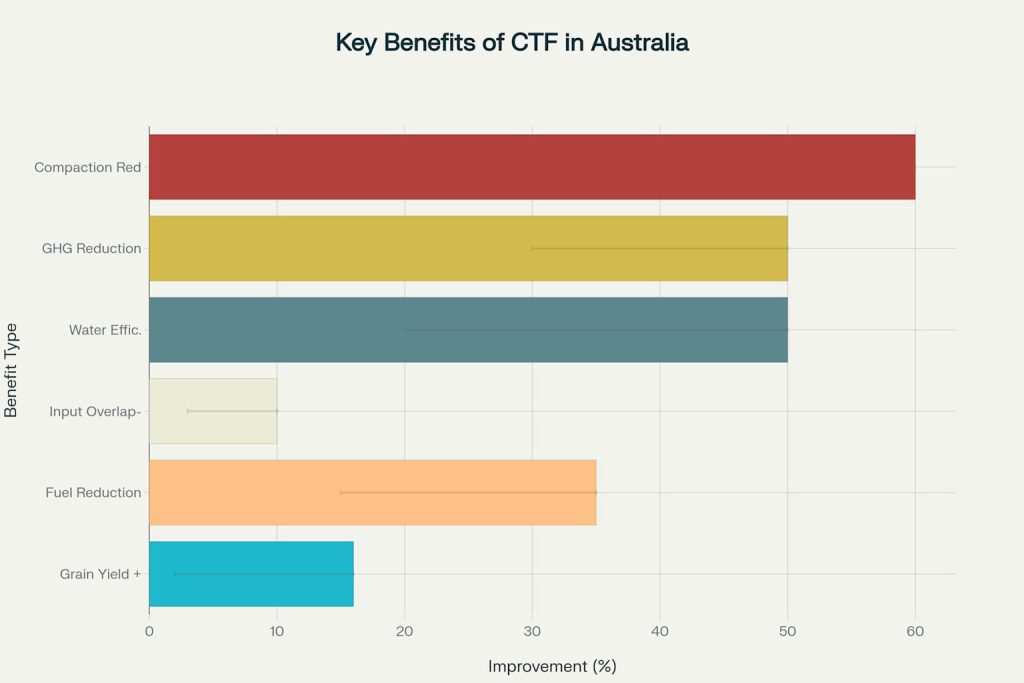

Key quantified benefits of controlled traffic farming systems across different Australian farming conditions, showing typical ranges of improvement observed in research studies and on-farm trials

Economic modeling conducted by the University of Western Australia demonstrates that CTF can increase farm income by $31 per hectare through improved yield and quality, with additional savings of $15 per hectare from reduced input costs2. Across a typical 1,500-hectare property, this translates to an annual profit increase of approximately $73,0002.

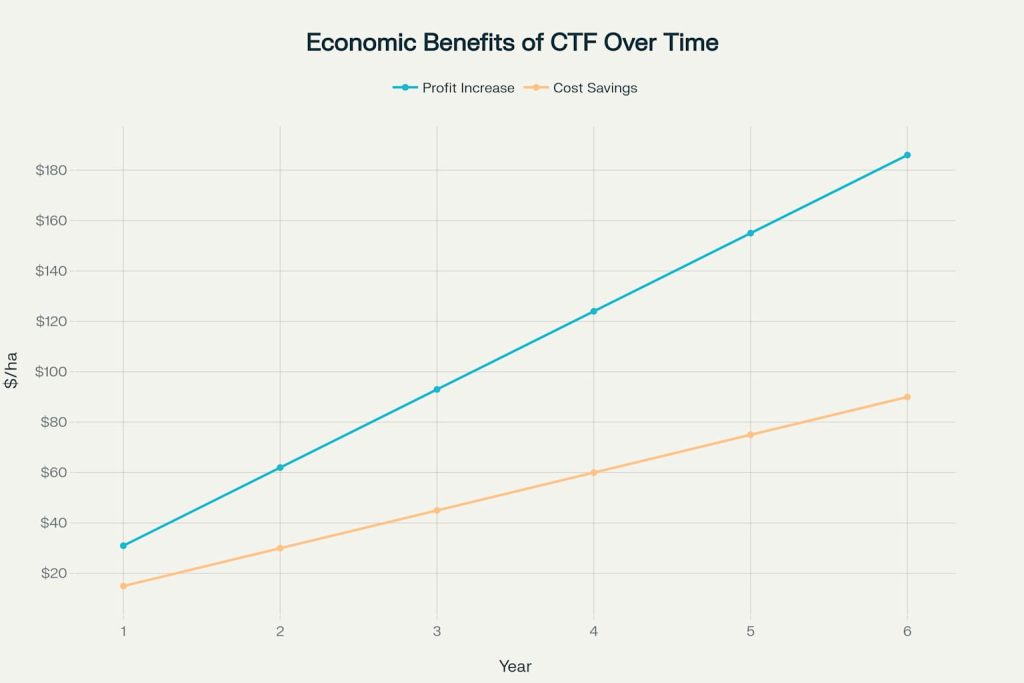

Economic benefits of controlled traffic farming accumulate over time, with profit increases from improved yields and quality complemented by ongoing cost savings from reduced fuel use and input overlaps

Fuel efficiency represents one of the most immediately observable benefits of CTF implementation. Farmers consistently report 15-35 percent reductions in fuel consumption when operating on firm traffic lanes compared to soft, uncompacted soils11 12. This improvement results from reduced rolling resistance, better traction, and the elimination of wheel slip that commonly occurs in soft soil conditions. The Queensland Department of Agriculture and Fisheries has documented fuel use reductions of up to 50 percent on clay soils under CTF management11.

Environmental Benefits

The environmental advantages of CTF align closely with economic benefits, creating a compelling case for adoption from both sustainability and profitability perspectives. Greenhouse gas emissions can be reduced by 30-50 percent through decreased fuel consumption and improved soil conditions that reduce nitrous oxide formation in waterlogged soils13. This reduction contributes significantly to agriculture’s climate change mitigation efforts while reducing operational costs.

Water use efficiency improvements of 20-50 percent have been documented in CTF systems, resulting from enhanced soil structure that improves water infiltration and storage capacity7 14. In Queensland trials on clay soils, peak infiltration rates were 40-50 percent greater under CTF management compared to trafficked areas11. This improved water efficiency is particularly valuable in Australia’s variable rainfall environment, where every millimeter of precipitation represents significant value.

Comparison of plant root growth, illustrating the impact of varying soil compaction on root development agrowplow.com

Soil biological activity shows marked improvement under CTF systems. Research in Queensland found that CTF can increase earthworm populations by 160 percent, mites by 40 percent, and springtails by 40 percent compared to conventionally trafficked soils11. This enhanced biological activity improves nutrient cycling, soil structure development, and overall ecosystem health within agricultural systems.

Technical Implementation: Machinery Matching and System Design

The successful implementation of CTF requires careful planning and coordination of all farm machinery to ensure compatible operating widths and wheel track spacing. This machinery matching process represents the technical heart of CTF systems and determines both the effectiveness and economic viability of implementation.

Machinery Matching Principles

The fundamental principle of machinery matching involves establishing a base width, typically determined by the harvester, and ensuring all other implements operate at compatible multiples of this width8. The harvester often serves as the base machine because it is typically the heaviest piece of equipment and the most difficult to modify. Common base widths in Australian conditions include 9 meters, 12 meters, and 13.5 meters, with corresponding sprayer widths of 27 meters, 36 meters, and 40.5 meters respectively8.

The most efficient CTF systems operate on a 3:1 ratio, where the sprayer width is three times the harvester/seeder width. This configuration minimizes the percentage of field area under permanent traffic while maintaining operational efficiency. However, many Australian farmers have adopted compromised ratios such as 1:1.5:3, which accommodate wider seeding equipment while still providing substantial benefits over uncontrolled traffic systems8.

Digital displays and GPS-guided machinery showcase the precision agriculture technologies central to controlled traffic farming practices precisiontechnology.com

Wheel track spacing standardization represents another critical component of CTF implementation. Three-meter wheel track centers have emerged as the most common configuration in Australian conditions, providing compatibility with the widest range of equipment while accommodating the weight and size of modern agricultural machinery8 15. This standardization enables farmers to modify existing equipment or specify new machinery with confidence that it will integrate into their CTF system.

Technology Requirements

Modern CTF systems rely heavily on precision agriculture technologies to achieve the accuracy required for effective traffic lane management. RTK GPS guidance systems providing 2-centimeter accuracy have become the gold standard for CTF implementation, enabling precise return to established traffic lanes across multiple seasons10 16.

The investment in guidance technology represents a significant component of CTF implementation costs, with complete RTK systems including base stations and autosteer equipment costing $20,000-$70,000 depending on farm size and equipment requirements12 17. However, many farmers report that the improved efficiency and reduced overlap achieved through precision guidance provides rapid payback on this investment, often within 2-3 years of installation18 2.

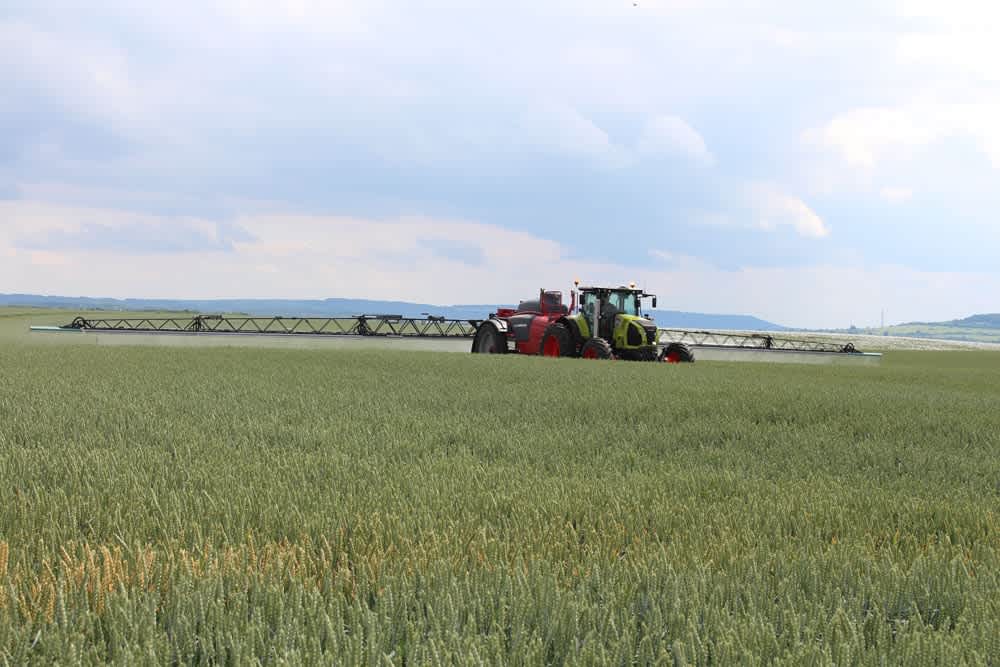

A self-propelled sprayer operates in a field, demonstrating the distinct parallel tracks characteristic of a controlled traffic farming system manitobacooperator

Machinery Modification Costs and Approaches

The cost of converting existing machinery to CTF compatibility varies significantly based on equipment type and the extent of modifications required. Harvester modifications typically represent the highest cost, ranging from $20,000-$50,000, primarily due to the need to extend unloading augers and potentially modify wheel track spacing15. Sprayer modifications are generally less expensive, costing $2,000-$15,000, as they primarily involve axle adjustments and boom width modifications.

ctf_machinery_requirements.csv

Generated File

Many Australian farmers have adopted a gradual approach to CTF implementation, modifying machinery as part of their regular replacement schedule to minimize additional capital requirements15 17. This strategy allows farmers to spread conversion costs over several years while progressively improving system integration and effectiveness.

Real-World Implementation: Case Studies from Australian Farmers

The practical implementation of CTF across Australia’s diverse agricultural regions provides valuable insights into both the benefits and challenges of system adoption. These real-world experiences demonstrate how farmers have adapted CTF principles to their specific conditions and operational requirements.

Deep Ripping Integration: The Fowler Family Experience

The Fowler family’s operation near Condingup in Western Australia exemplifies the integration of CTF with soil amelioration practices. Operating across 19,000 hectares of cropping on sandy loam duplex soils prone to waterlogging, the Fowlers implemented CTF in 2016 specifically to preserve the benefits of deep ripping investments12.

Their CTF system utilizes 12-meter machinery widths with 36-meter sprayers and 3-meter wheel track centers, supported by a comprehensive RTK guidance system across all operations. The investment in precision technology exceeded $200,000, including automated steering systems for all tractors and harvesters12.

The results have been dramatic. Wheat yields increased by over 1 tonne per hectare in the first year, rising from 3 tonnes per hectare on non-ripped areas to over 4 tonnes per hectare on deep-ripped land managed under CTF. The system’s effectiveness was particularly evident during heavy rainfall events, where CTF-managed areas maintained soil oxygenation and water infiltration while adjacent conventional areas experienced waterlogging and anaerobic conditions12.

Multi-System Integration: Stott Redman’s Approach

Stott Redman’s operation in Hopetoun demonstrates CTF as part of a comprehensive soil health strategy. Farming 8,700 hectares across sandy gravel, deep sand, and grey clay soils, Redman has integrated CTF with extensive drainage systems and deep ripping to address waterlogging challenges12.

His CTF system operates on 12-meter and 36-meter widths with 3-meter wheel track centers, but implementation has revealed specific challenges related to soil type variations. Grey clay soils show significant tramline damage from sprayer operations, requiring 2-3 weeks annually for tramline renovation using specialized equipment12.

Despite these challenges, Redman reports visible crop health improvements in CTF areas, with plants remaining greener and healthier during wet periods compared to trafficked zones. The system provides resilience benefits in both wet and dry years by maintaining unrestricted root growth zones12.

Economic Optimization: Paul O’Meehan’s Pragmatic Approach

Paul O’Meehan’s operation near Borden represents a more pragmatic approach to CTF implementation, prioritizing operational efficiency over strict traffic control. Operating 18.2-meter seeders and 36.6-meter sprayers while using 12.2-meter harvesters that don’t match the system ratio, O’Meehan demonstrates that significant benefits can be achieved without perfect machinery matching12.

His approach emphasizes maintaining operational flexibility and avoiding equipment constraints that might compromise timing of critical operations. While not achieving the same level of traffic control as fully matched systems, this approach still reduces trafficked area compared to conventional operations while maintaining the operational scale necessary for economic viability12.

A Coolamon chaser bin with a track undercarriage system being filled with grain in a harvested field, illustrating equipment used to reduce soil compaction in agriculture coolamon.com

Challenges and Solutions in CTF Implementation

Despite the proven benefits of CTF, adoption faces several challenges that vary across different regions and farming systems. Understanding these challenges and their potential solutions is crucial for continued expansion of CTF practices across Australian agriculture.

Technical Challenges

Machinery compatibility represents the most significant technical challenge for CTF adoption. The proliferation of different operating widths and wheel spacings across equipment manufacturers creates complexity in developing matched systems19. Many farmers struggle with the decision of whether to modify existing equipment or replace machinery to achieve compatibility.

Tramline maintenance emerges as an ongoing operational challenge, particularly in high-rainfall areas and on certain soil types. Heavy clay soils are particularly prone to rutting and damage during wet conditions, requiring regular renovation using specialized equipment12 15. The cost and time required for tramline maintenance can impact the economic benefits of CTF, particularly in the early years of implementation.

Erosion management has become a critical concern, particularly following extreme rainfall events. The concentrated nature of CTF traffic lanes can create preferential flow paths for surface water, potentially increasing erosion risk on sloping terrain12. Several case study farmers reported significant erosion damage following heavy rainfall events, requiring substantial repair efforts and questioning of system orientation and design.

Economic and Adoption Barriers

Initial capital requirements represent a significant barrier for many farmers considering CTF adoption. The combination of precision guidance technology and machinery modifications can require investments of $40,000-$100,000 or more, depending on farm size and existing equipment compatibility18 2. These upfront costs can be challenging to justify, particularly for smaller operations or during periods of low commodity prices.

Skills and knowledge gaps also impede adoption, as CTF requires understanding of precision agriculture technologies, soil physics, and system design principles. The complexity of GPS guidance systems, machinery modifications, and tramline management requires skills that extend beyond traditional farming knowledge12.

Addressing Implementation Challenges

Successful CTF implementation increasingly relies on staged conversion approaches that allow farmers to spread costs over multiple years while gradually improving system integration15 17. Many successful adopters recommend starting with guidance technology adoption and basic machinery matching before progressing to more comprehensive system integration.

Industry support infrastructure has developed to address technical challenges, with specialized contractors offering machinery modification services and tramline renovation equipment becoming more widely available15. Agricultural equipment dealers increasingly offer CTF-compatible machinery specifications, reducing the need for custom modifications.

Research and demonstration programs continue to address knowledge gaps and provide evidence-based guidance for system design and implementation. The Grains Research and Development Corporation’s Soil Constraints program has been particularly influential in developing region-specific recommendations and supporting farmer adoption12.

Future Directions and Innovation in CTF

The future of CTF in Australia points toward increased automation, improved equipment design, and integration with emerging technologies that will further enhance system effectiveness and reduce implementation barriers.

Technological Advancement

Autonomous machinery represents the next frontier for CTF development. Self-driving tractors and implements that can precisely follow pre-programmed traffic lanes without human intervention will eliminate operator error and enable 24-hour operations during critical periods. Several Australian manufacturers are developing autonomous systems specifically designed for CTF applications17.

Variable rate technology integration allows CTF systems to optimize input applications based on precise field mapping and real-time sensor data. This integration enables farmers to apply fertilizers, seeds, and chemicals at variable rates across different zones within the permanent cropping areas, maximizing efficiency while minimizing environmental impact20.

Swarm robotics and small autonomous machines offer potential solutions to some current CTF limitations. Lighter, smaller machines operating in coordinated groups could reduce soil compaction while maintaining operational capacity, particularly for tasks like seeding and crop monitoring21.

Industry Evolution

Standardization initiatives are gaining momentum across the Australian agricultural machinery industry. Efforts to establish common width and spacing standards for CTF-compatible equipment could significantly reduce implementation complexity and costs19. Industry associations are working with manufacturers to develop standardized specifications that would ensure compatibility across different brands and equipment types.

Service industry development continues to expand around CTF implementation and management. Specialized contractors offering machinery modification, tramline renovation, and system design services are becoming more widely available, reducing the technical barriers for farmers interested in CTF adoption15.

Integration with carbon farming and other environmental programs presents new economic opportunities for CTF adopters. The demonstrated environmental benefits of CTF, including reduced greenhouse gas emissions and improved soil health, position the practice well for inclusion in emerging carbon credit and biodiversity programs13.

A large tractor with a wide boom sprayer applies treatment to a field of green grain crops grainews

Conclusion: CTF as a Foundation for Sustainable Agriculture

Controlled Traffic Farming has emerged as a transformative practice that addresses multiple challenges facing Australian agriculture simultaneously. By reducing soil compaction, improving operational efficiency, and enhancing environmental outcomes, CTF provides a foundation for sustainable intensification of agricultural production.

The evidence from research trials and on-farm implementation consistently demonstrates significant benefits across economic, environmental, and operational dimensions. Yield improvements of 2-16 percent, fuel savings of 15-35 percent, and substantial reductions in soil compaction create compelling value propositions for farmers across diverse agricultural systems4 7 11.

However, successful CTF implementation requires careful planning, significant investment in precision technology, and ongoing management to maintain system effectiveness. The regional variations in adoption rates reflect both the opportunities and challenges associated with adapting CTF principles to different soil types, climates, and farming systems across Australia.

As the Australian agricultural sector continues to face pressures from climate variability, input cost increases, and environmental regulations, CTF provides a proven pathway toward more sustainable and profitable farming systems. The continued development of supporting technologies, industry infrastructure, and farmer knowledge will likely drive further expansion of CTF adoption across the continent’s agricultural regions.

The success of CTF in Australia also positions the country as a global leader in sustainable agricultural practices, with Australian innovations and experiences increasingly informing CTF development in other regions worldwide. This leadership role reflects the agricultural sector’s capacity for innovation and adaptation in response to emerging challenges and opportunities.

For farmers considering CTF adoption, the evidence suggests that while implementation requires significant planning and investment, the long-term benefits justify these costs across most Australian agricultural systems. The key to success lies in careful system design, staged implementation, and ongoing commitment to maintaining and optimizing the system over time.
